Custom LCD Display Solutions: Complete Guide from Requirements to Implementation

Introduction

In today's competitive industrial landscape, off-the-shelf display solutions often fall short of meeting the specific requirements of specialized applications, particularly those operating in harsh environments. As an engineer with over a decade of experience developing custom display solutions, I've guided countless organizations through the complex journey from initial requirements to successful implementation. This comprehensive guide outlines the critical considerations, decision points, and best practices for developing custom LCD display solutions that deliver exceptional performance in challenging conditions.

Understanding the Value of Custom LCD Solutions

Before embarking on a custom display development journey, it's essential to understand when customization delivers genuine value versus when standard solutions might suffice with minor adaptations.

When Custom Displays Deliver Maximum Value

Custom LCD solutions deliver maximum value in these scenarios:

1. Extreme Environmental Conditions: Applications requiring operation in temperature ranges beyond -20°C to 60°C, high humidity, or exposure to dust, vibration, and chemicals
2. Specialized Form Factors: Non-standard dimensions, unique aspect ratios, or integration constraints that cannot be addressed with standard sizes
3. Enhanced Performance Requirements: Applications demanding exceptional brightness (1000+ nits), extended color gamut, or specialized viewing angles
4. Unique Interface Requirements: Custom control systems, legacy connections, or specialized communication protocols
5. Long-Term Availability: Projects requiring guaranteed supply for 5+ years beyond typical commercial availability

The Custom LCD Development Process: A Structured Approach

Successful custom display development follows a structured process that balances technical requirements, timeline constraints, and budget considerations.

Phase 1: Requirements Analysis and Specification

The foundation of any successful custom display project is a comprehensive requirements specification that captures all critical parameters.

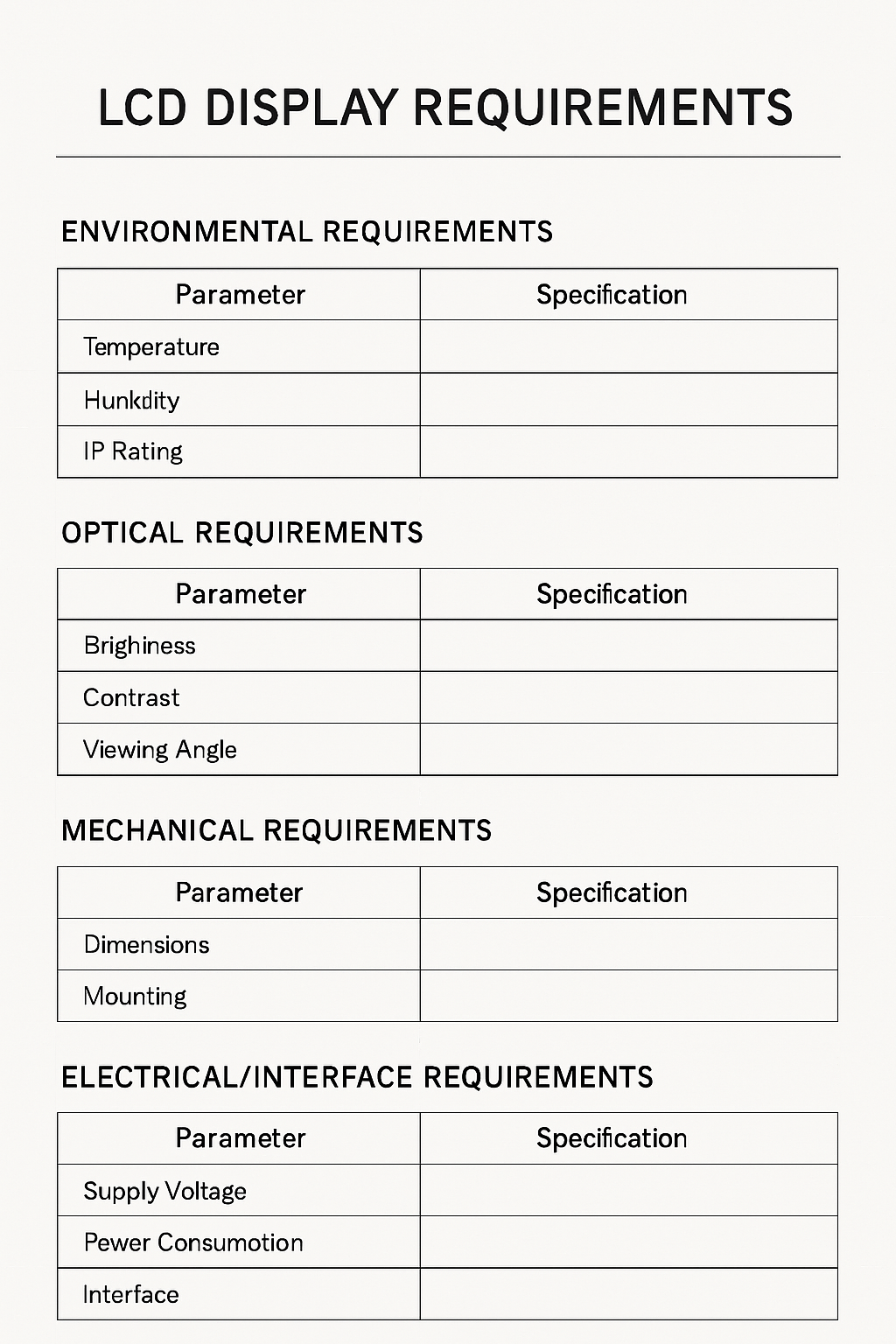

Figure: 2: Comprehensive requirements specification framework showing critical parameters across environmental, optical, mechanical, and electrical categories

Critical Specification Parameters

1. Environmental Requirements:
   - Operating temperature range
   - Storage temperature range
      - Humidity tolerance
      - IP rating requirements
      - Vibration and shock resistance
      - Chemical exposure considerations
2. Optical Requirements:
   - Brightness (nits)
   - Contrast ratio
      - Color gamut
      - Viewing angle
      - Sunlight readability
      - Anti-glare/anti-reflection needs
3. Mechanical Requirements:
   - Dimensional constraints
   - Mounting method
      - Bezel requirements
      - Weight limitations
      - Ruggedization needs
4. Electrical and Interface Requirements:
   - Input voltage range
   - Power consumption constraints
      - Signal interface type
      - Touch technology requirements
      - EMI/EMC considerations

Requirements Prioritization Framework

Not all requirements carry equal weight. Establishing a clear prioritization framework helps guide decision-making when trade-offs become necessary:

- Must-Have: Requirements that are non-negotiable for functional success
- High-Value: Requirements that deliver significant performance advantages
- Nice-to-Have: Requirements that enhance the solution but aren't critical
- Future Consideration: Requirements that could be implemented in later revisions

Phase 2: Technology Selection and Design Approach

With requirements clearly defined, the next phase involves selecting the optimal LCD technology and design approach.

LCD Technology Selection Matrix

Design Approach Options

Three primary approaches exist for custom LCD development, each with distinct advantages:

1. Modified COTS (Commercial Off-The-Shelf):
   - Adapting existing display modules with enhanced features
   - Fastest development timeline (8-12 weeks)
      - Lower minimum order quantities (50-100 units)
      - Limited customization options
2. Semi-Custom Development:
   - Utilizing existing LCD cells with custom backlights, controllers, and interfaces
   - Moderate development timeline (12-20 weeks)
      - Moderate minimum order quantities (100-500 units)
      - Good balance of customization and efficiency
3. Full Custom Development:
   - Developing purpose-built displays from the ground up
   - Extended development timeline (20-40 weeks)
      - Higher minimum order quantities (500+ units)
      - Maximum customization flexibility

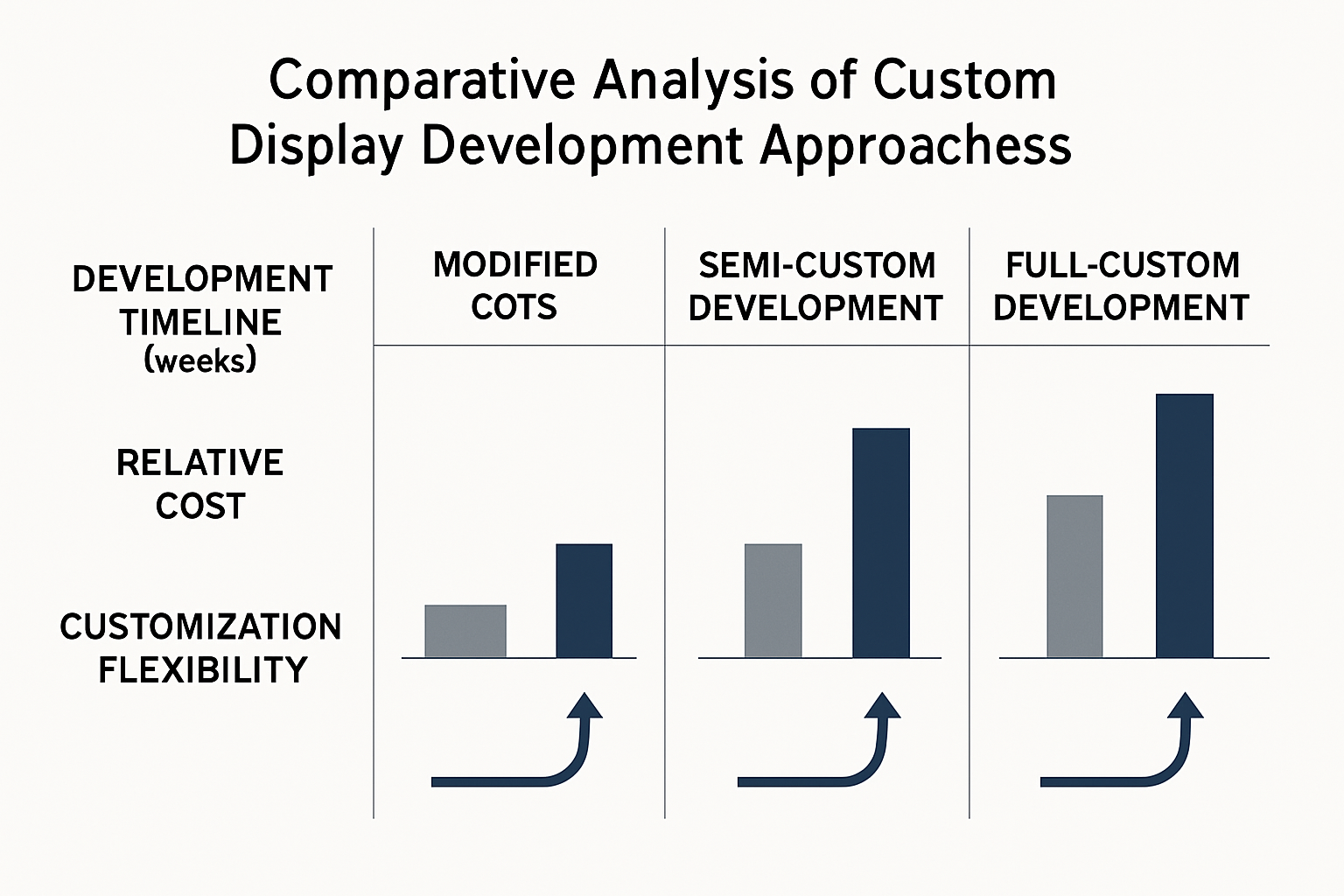

Figure: 3: Comparative analysis of custom display development approaches showing timeline, cost, and customization flexibility trade-offs

Phase 3: Prototyping and Validation

Thorough prototyping and validation are essential to ensure the custom display will perform as expected in its intended environment.

Critical Validation Testing

1.
   Environmental Testing:
   - Temperature cycling
   - Humidity exposure
      - Vibration and shock testing
      - IP rating verification
      - UV exposure for outdoor applications
2. Optical Performance Validation:
   - Brightness and contrast measurement
   - Color accuracy verification
      - Viewing angle testing
      - Sunlight readability assessment
3. Reliability Testing:
   - Power cycling
   - Extended operation
      - Accelerated life testing
      - MTBF calculation
4. Integration Validation:
   - Mechanical fit verification
   - Electrical interface testing
      - EMI/EMC compliance
      - Software/firmware compatibility

Iterative Refinement Process

The prototype phase typically involves multiple iterations to address issues discovered during testing:

1. Alpha Prototype: Initial proof-of-concept to validate basic functionality
   2. Beta Prototype: Refined design addressing major issues identified in alpha testing
   3. Pre-Production Prototype: Final design validation before full production commitment

Regional Considerations for Custom Displays

Different global regions present unique challenges for custom displays, requiring specialized engineering approaches.

Middle Eastern Environments

Custom displays for Middle Eastern deployments must address:

- Extreme high temperatures (often exceeding 50°C)
- Direct sunlight with high UV exposure
- Fine dust infiltration
- Wide daily temperature fluctuations

Recommended customizations include:
- Enhanced thermal management systems
- Ultra-high brightness (2500+ nits)
- Specialized optical bonding with UV filtering
- IP65+ sealing with positive pressure systems

Southeast Asian Tropical Conditions

Custom displays for Southeast Asian environments must address:

- High humidity (often 90%+)
- Heavy seasonal rainfall
- Moderate to high temperatures year-round
- Potential salt air exposure in coastal areas

Recommended customizations include:
- Conformal coating of all electronics
- Anti-fungal treatments
- Condensation prevention systems
- Corrosion-resistant materials and treatments

Industry-Specific Custom Display Solutions

Manufacturing and Industrial Automation

Custom displays for manufacturing environments typically require:

- Wide temperature operation for varied plant conditions
- Glove-compatible touch interfaces
- High vibration tolerance
- Chemical resistance for cleaning procedures
- Extended product lifecycles (7-10+ years)

Outdoor Kiosks and Digital Signage

Custom displays for outdoor applications typically require:

- Ultra-high brightness (2000-5000 nits)
- IP65+ environmental protection
- Wide temperature operation
- Anti-vandalism features
- Automatic brightness adjustment

Transportation and Vehicle Systems

Custom displays for transportation applications typically require:

- Extreme temperature tolerance
- High vibration and shock resistance
- Wide input voltage tolerance
- Sunlight readability
- Night mode capability

Cost-Benefit Analysis and ROI Considerations

Total Cost of Ownership Framework

When evaluating custom display solutions, consider these factors beyond initial development and unit costs:

1. Reduced Failure Rate: Custom displays designed for specific environments typically experience 3-5x lower failure rates than adapted commercial displays
2. Extended Lifespan: Purpose-built displays often achieve 2-3x longer operational life
3. Decreased Downtime: Improved reliability translates directly to increased system availability
4. Reduced Integration Costs: Purpose-designed mechanical and electrical interfaces simplify integration
5. Enhanced User Experience: Optimized optical performance improves usability and reduces errors

ROI Calculation Example

For a typical industrial application with 100 deployed units:

Implementation Best Practices and Pitfalls to Avoid

Critical Success Factors

1. Comprehensive Requirements: Invest time upfront in detailed requirements gathering and specification
2. Realistic Timeline Planning: Custom display development typically requires 3-9 months depending on complexity
3. Environmental Testing: Test prototypes in actual deployment environments or accurate simulations
4. Supply Chain Consideration: Evaluate component availability and lifecycle management early in the process
5. Firmware Upgrade Path: Ensure the design includes provisions for future firmware updates

Common Pitfalls to Avoid

1. Underspecified Environmental Requirements: Failing to fully define the operating environment leads to performance issues
2. Overlooking Certification Requirements: Regulatory certifications can add significant time and cost if not planned early
3. Insufficient Testing: Abbreviated testing often results in field failures and costly retrofits
4. Proprietary Dependencies: Creating solutions dependent on single-source components or technologies
5. Inadequate Documentation: Poor documentation complicates maintenance, troubleshooting, and future enhancements

Conclusion

Custom LCD display solutions represent a significant investment but deliver exceptional value for applications operating in harsh environments where standard commercial displays would fail to perform or require frequent replacement. By following a structured development process, thoroughly validating prototypes in realistic conditions, and carefully considering total cost of ownership, organizations can implement custom display solutions that provide reliable performance and superior return on investment.

XIANHENG's engineering team specializes in developing custom high-brightness, wide-temperature LCD solutions optimized for harsh environments. With extensive experience creating displays for industrial automation, outdoor kiosks, and transportation systems across global markets, we provide end-to-end support from requirements analysis through production and long-term supply.

For more information on developing custom LCD display solutions tailored to your specific environmental challenges and application requirements, contact our technical team for a consultation.
