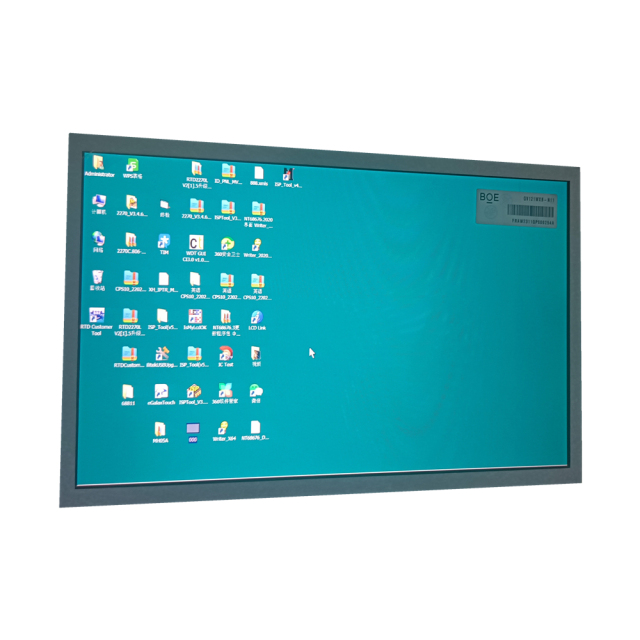

| Brand | BOE |
| Model P/N | QV121WXB-N11 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | - |
| Outline Size | 269.12(W)×173(H)×1.34(D) mm |
| Treatment | Antiglare (Haze 42%) |
| Luminance | 1000 cd/m² |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED |
| Mass | TBD |
| Used for | Home Appliance |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COG 2 source chips |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
