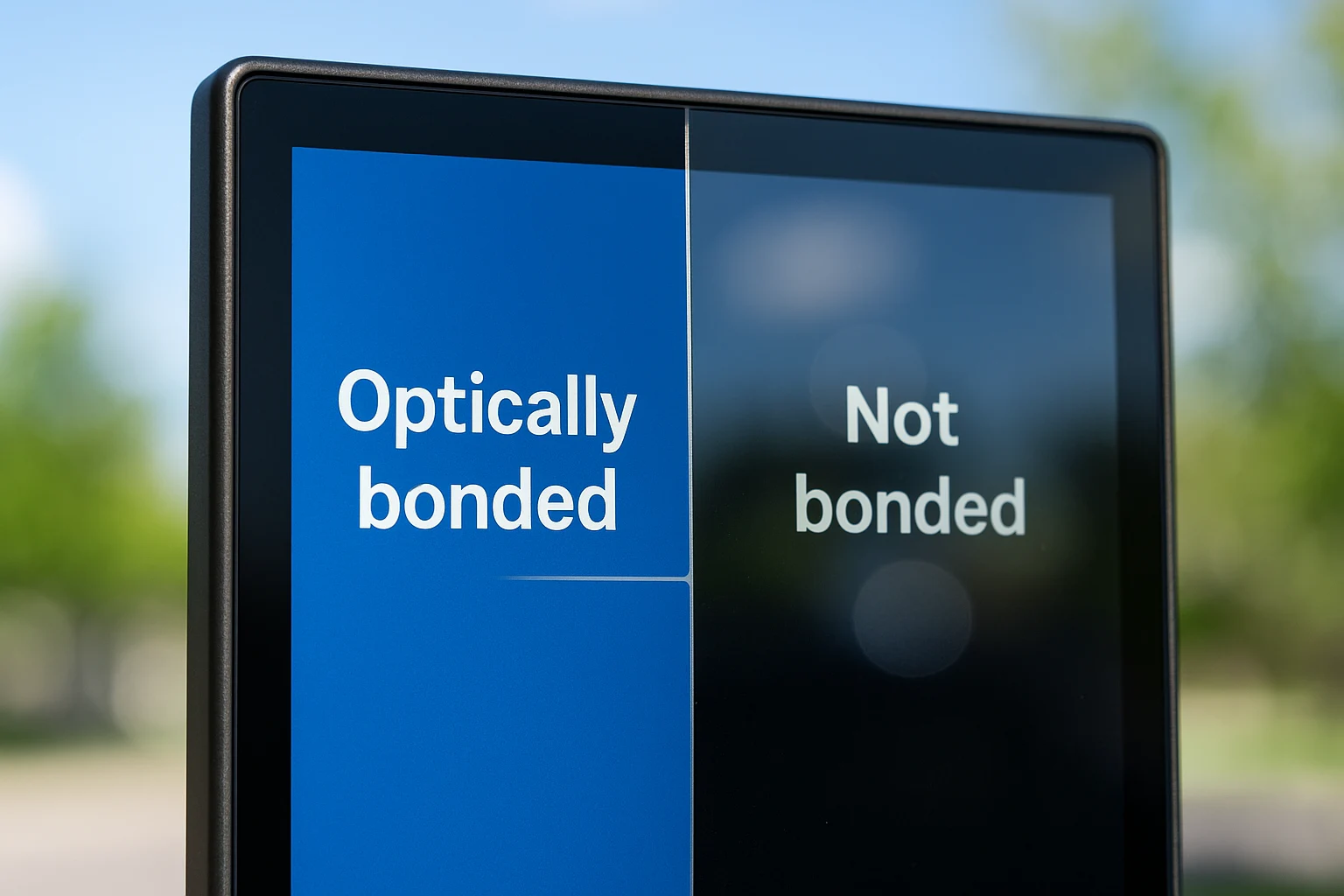

Having established the detrimental effects of air gaps in unbonded displays, the solution lies in a precise manufacturing process known as optical bonding. This advanced technique directly counters the issues of glare and diminished clarity by altering the optical path of light within the display assembly. Optical bonding is not simply about filling a void; it is about creating a monolithic optical structure where light encounters fewer refractive index changes, thus significantly reducing reflections and ensuring a greater proportion of the display’s generated light reaches the viewer, even in challenging ambient conditions. This process fundamentally transforms an outdoor display from a reflective mirror into a clear, vibrant information source.
Optical bonding fills the air gap between the LCD panel and its cover glass with a transparent, optically matched adhesive. This eliminates internal reflections by creating a single optical medium, preventing light from scattering. It significantly boosts contrast, reduces glare, and enhances perceived brightness, making the display highly readable in direct sunlight. The adhesive's refractive index is carefully matched to that of glass.
To fully appreciate the transformation that optical bonding brings, we must examine its precise mechanism and the resulting optical benefits.
The Principle of Refractive Index Matching: At its core, optical bonding relies on the principle of refractive index matching. Whenever light moves from one medium to another (e.g., from glass to air), a portion of it is reflected. This reflection occurs because of a difference in the refractive indices of the two media. Air has a refractive index of approximately 1.0, while glass typically has a refractive index around 1.5. This significant difference creates substantial reflections at each interface. Optical bonding involves injecting a specialized, transparent adhesive (often a liquid resin or silicone) into the air gap between the LCD panel and the protective cover glass. This adhesive is carefully formulated to have a refractive index very close to that of glass (e.g., between 1.45 and 1.55). By filling the air gap with a material that optically matches the glass, the light no longer encounters a significant change in refractive index as it passes from the cover glass to the adhesive, and then from the adhesive to the LCD panel. This effectively eliminates the multiple internal reflections that plagued unbonded displays.
Eliminating Internal Reflections: When light, especially bright ambient light, strikes an unbonded display, it reflects off four primary surfaces: the top of the cover glass, the bottom of the cover glass, the top of the LCD panel, and the bottom of the LCD panel. Each reflection reduces light transmission and contributes to glare. With optical bonding, the interfaces between the cover glass and the LCD panel are effectively merged into one continuous optical medium. This eliminates two of the four major reflective surfaces (the inner surface of the cover glass and the outer surface of the LCD panel). The result is a dramatic reduction in internally generated glare, which in turn leads to a clearer and more vivid image, even under direct sunlight. Instead of battling multiple ghost images, the viewer sees a single, sharp display.
Boosting Contrast Ratio and Perceived Brightness: The reduction in internal reflections directly leads to a significant increase in the display’s contrast ratio. Contrast ratio is the difference between the brightest white and the darkest black a display can produce. In an unbonded display, reflected ambient light "washes out" the dark areas, making blacks appear grey and reducing the overall distinction between light and dark elements. By eliminating these internal reflections, optical bonding allows the display to render true blacks and whites more effectively, leading to a much higher perceived contrast. Furthermore, less light is reflected away from the viewer, meaning more of the display's own generated light reaches the eye. This results in a higher perceived brightness, even without increasing the backlight intensity. The display effectively becomes more efficient at transmitting its own light output, making it appear brighter and more vibrant without necessarily consuming more power, a crucial benefit for outdoor and battery-powered applications.
Reducing Parallax and Enhancing Viewing Angles: Optical bonding also has a beneficial effect on visual fidelity. When there's an air gap, a slight separation exists between the image-generating layer (the LCD) and the touch layer or cover glass. This can create a phenomenon called parallax, where the perceived position of an on-screen element shifts depending on the viewing angle, making precise touch input or viewing difficult, particularly for smaller details. By bonding the layers directly, parallax is virtually eliminated, leading to a more direct and accurate visual and touch experience. Additionally, by reducing scattered internal light, optical bonding can subtly improve the display's viewing angles, ensuring content remains clear and colors true, even when viewed from oblique positions, which is often a necessity for public information displays or industrial interfaces used by multiple operators. This makes the display more accessible and usable for a wider audience.
Improved Color Saturation and Clarity: The reduction in internal light scattering also contributes to better color reproduction. When light is reflected and scattered within the display, it can desaturate colors and introduce a hazy appearance. By providing a clear, uninterrupted optical path, optical bonding allows the display to render colors with greater purity and saturation, making images and graphics more impactful and legible. The overall visual clarity is enhanced, presenting a sharper and more professional appearance that attracts attention and conveys information effectively. This makes text crisper and images more lifelike, which is particularly important for displays that need to convey detailed graphical information or brand messaging in challenging lighting.
The combined effect of these optical improvements is transformative. An optically bonded display is not just brighter; it is fundamentally clearer, more vibrant, and more engaging in high-ambient light environments. This enhancement is not merely an aesthetic upgrade; it directly translates into superior readability, reduced user error, and a more effective communication tool, justifying the investment for any critical outdoor or high-brightness application. It ensures that the display functions as intended, providing actionable information rather than a frustrating reflection.
Optical bonding eliminates multiple internal reflections by creating a single optical medium, significantly reducing glare and enhancing display readability in direct sunlight.
The process substantially boosts the display's effective contrast ratio and perceived brightness by preventing light scattering and ensuring more generated light reaches the viewer.
Eliminating the air gap minimizes parallax, leading to more accurate touch interaction and consistent visual perception across various viewing angles.
Optical bonding improves color saturation and overall image clarity by reducing internal light scattering, making graphics and text appear sharper and more vibrant.
The optical benefits of bonding translate directly into superior user experience and operational effectiveness for displays in challenging ambient light conditions.
While the optical advantages of optical bonding are immediately apparent in terms of clarity and readability, its contributions to a display's physical durability and environmental resilience are equally, if not more, critical for industrial and outdoor applications. The process transforms a layered assembly into a solid, monolithic unit, inherently fortifying it against external forces and environmental degradation. This structural enhancement extends the display's operational lifespan, reduces the likelihood of costly damage, and ensures reliable performance in conditions that would quickly compromise an unbonded counterpart. It's a fundamental step in building displays that not only perform well but endure.
Optical bonding significantlyenhances display durability by absorbing shock and vibration, preventing glass breakage and LCD damage. It also eliminates air gaps, preventing moisture and dust ingress, which averts internal condensation and protects sensitive electronics. This solidification makes the display more resistant to physical abuse and environmental contaminants, ensuring long-term reliability.
Let's explore how optical bonding goes beyond optical performance to provide crucial physical and environmental protection.
Enhanced Impact and Vibration Resistance: In an unbonded display, the air gap between the cover glass and the LCD panel acts as a void that offers no structural support. When the cover glass is subjected to impact (e.g., a direct hit, a dropped tool, or vandalism in a public setting), it can flex significantly into this air gap, transferring the shock directly to the delicate LCD panel underneath. This can easily lead to shattered glass, cracked liquid crystal cells, or damaged internal circuitry. With optical bonding, the transparent adhesive fills this gap, creating a solid, unified structure. The impact energy is distributed much more effectively across the entire surface and absorbed by the flexible bonding material, dramatically reducing the stress on the LCD panel itself. This makes the display significantly more resistant to direct impacts, drops, and general physical abuse. Similarly, in high-vibration environments (like heavy machinery, vehicles, or industrial robots), the solid bond prevents micro-fretting and fatigue that can occur when layers are loosely separated, leading to a much longer operational life in dynamic conditions. The bonding material acts as a dampener, effectively isolating the LCD from external mechanical stresses.
Elimination of Condensation and Dust Ingress: As discussed earlier, air gaps are notorious for trapping moisture and allowing dust accumulation. Optical bonding directly addresses this by hermetically sealing the display assembly. By filling the entire space between the cover glass and the LCD panel with adhesive, there is no air left to condense, and no pathway for dust, dirt, or other environmental contaminants to enter. This means: * No Internal Condensation: Displays used outdoors or in environments with rapid temperature changes will not suffer from internal fogging, ensuring continuous clarity. * Protection from Particulates: Dust, sand, and fine industrial debris cannot accumulate on inner surfaces, preventing permanent visual imperfections and potential short-circuits to sensitive electronics. * Enhanced Water Resistance: While not making the display submersible on its own, the sealed assembly significantly contributes to a higher Ingress Protection (IP) rating by preventing water from seeping between layers, which is crucial for wash-down applications or rain exposure.
Improved Thermal Management: Although not its primary function, optical bonding can contribute positively to the display’s thermal management. The adhesive acts as an additional thermal conduction path, helping to dissipate heat more effectively from the LCD panel (which can generate heat) to the cover glass and then to the ambient environment. This can subtly help in preventing localized hotspots within the display, contributing to a more uniform temperature distribution across the panel, which in turn can extend the lifespan of the LCD and its backlight by reducing thermal stress on components. In high-brightness displays, where heat generation is a significant concern, this added thermal pathway can be a beneficial ancillary effect.
Prevention of Delamination and Enhanced Long-Term Stability: Over extended periods, especially with exposure to temperature cycling and humidity, the thin films and layers within unbonded displays can be prone to delamination, where the adhesive bonds between layers fail. This leads to bubbles, ripples, and a significant degradation of optical performance. The robust, flexible adhesives used in optical bonding are specifically formulated for long-term stability and resistance to environmental stress. They maintain their integrity and adhesive strength through years of operation, preventing delamination and ensuring the display's optical clarity and structural integrity remain intact for its entire lifespan. This contributes significantly to the display's overall reliability and reduces the need for premature replacements.
The holistic approach of optical bonding offers a clear advantage in challenging environments. It transforms a display from a collection of vulnerable layers into a solid, resilient unit that can withstand physical abuse and environmental extremes. This directly translates into lower failure rates, reduced maintenance costs, and a significantly longer operational lifespan, providing a tangible return on investment for businesses that cannot afford display downtime. Optically bonded displays are not just clearer; they are fundamentally tougher, assuring continuous, reliable performance where it matters most.
Optical bonding creates a solid, unified structure that significantly enhances impact and vibration resistance by distributing stress and absorbing energy.
The process effectively eliminates internal condensation and prevents dust and dirt ingress by completely sealing the display assembly.
Optical bonding contributes to improved thermal management by providing an additional conductive path for heat dissipation, helping to prolong component lifespan.
The robust adhesives used in bonding prevent delamination over time, ensuring long-term optical clarity and structural integrity in harsh conditions.
These durability and environmental benefits directly translate into reduced maintenance costs, increased operational uptime, and extended product lifespan, providing a clear ROI.
Given the compelling optical, durability, and environmental benefits of optical bonding, a natural question arises: is it a universal requirement for all industrial and commercial LCD applications? While the advantages are clear, the answer is nuanced. The necessity of optical bonding hinges entirely on the specific operational environment, the functional requirements, and the expected lifespan of the display within its intended application. It represents an additional manufacturing step and associated cost, meaning its implementation must be justified by the value it delivers in a particular use case. Making an informed decision requires a thorough assessment of the display’s deployment context.
Optical bonding is essential for displays exposed to direct sunlight, high ambient light, rapid temperature fluctuations (to prevent condensation), or environments prone to physical impact and vibration. It may not be strictly necessary for displays in controlled indoor settings, low-light conditions, or those with very limited physical interaction, where its cost might outweigh its benefits for that specific application.
Determining whether optical bonding is a "must-have" for your specific industrial application requires a careful evaluation against several key criteria. As an engineer, my recommendation always centers on a cost-benefit analysis driven by the application's unique demands.
When Optical Bonding Becomes Non-Negotiable:
Direct Sunlight Exposure: This is arguably the strongest driver. For applications like outdoor digital signage, public information kiosks, marine navigation systems, agricultural equipment displays, and construction vehicle HMIs, where direct sunlight is a constant factor, optical bonding is truly indispensable. Without it, the display becomes an unreadable mirror, nullifying its purpose. The enhanced contrast and reduced glare are critical for ensuring information is consistently clear and actionable.
High Ambient Light Environments: Even indoors, certain industrial settings like bright factories, large warehouses with skylights, or retail environments with strong overhead lighting can benefit significantly. The principles of glare reduction and contrast enhancement still apply, ensuring comfortable and efficient viewing.
Rapid Temperature Fluctuations & High Humidity: Any environment where condensation is a risk—such as cold storage facilities, unheated outdoor enclosures, or transitional spaces between hot and cold zones—demands optical bonding. Eliminating the air gap is the most effective way to prevent internal fogging, ensuring continuous display functionality and preventing moisture-related damage to electronics.
High-Impact or High-Vibration Environments: For displays in heavy machinery, transportation (buses, trains, trucks), military equipment, or public touchpoints prone to vandalism, the structural reinforcement provided by optical bonding is vital. It acts as an internal shock absorber, significantly reducing the risk of glass breakage and LCD damage from physical forces. This directly translates to lower replacement costs and fewer operational disruptions.
Demanding Optical Performance Requirements: Applications that require exceptionally high contrast, wide viewing angles, or precise color fidelity even under challenging lighting conditions will benefit immensely. Optical bonding ensures the display's inherent optical capabilities are fully realized, providing a premium visual experience.
When Optical Bonding May Be Optional (or Less Critical):
Controlled Indoor Environments: For displays strictly used in office environments, control rooms with stable temperatures, or other indoor settings with controlled lighting, the primary drivers for optical bonding (glare, condensation, impact) are significantly reduced. A well-designed, unbonded display can perform adequately here.
Low-Cost, Short-Lifespan Applications: In some cases, for very cost-sensitive applications with a short expected operational lifespan or where clarity in direct sunlight is not a key performance indicator, the added cost of optical bonding might be deemed unnecessary. However, even here, the durability benefits should be weighed carefully against potential replacement costs.
Simple Indicator Displays: For displays that convey only very basic, static information (e.g., simple status indicators) and are not interactive or critical for nuanced data interpretation in varied lighting.
The decision to implement optical bonding should be part of a comprehensive design review, taking into account the display's lifecycle, the cost of potential failure, and the user's expected experience. While it adds to the initial manufacturing cost, the long-term benefits in terms of display performance, reliability, and reduced total cost of ownership in demanding applications often make it an extremely worthwhile, if not essential, investment. XIANHENG Tech provides expert consultation to help you evaluate these factors and select the most appropriate display solution for your unique business needs, ensuring optimal performance without over-engineering your product. We help you balance performance with practicality.
Optical bonding is non-negotiable for displays in direct sunlight, high ambient light, or environments with rapid temperature fluctuations to ensure readability and prevent condensation.
It is crucial for displays in high-impact or high-vibration environments due to the significant structural reinforcement it provides, reducing damage risk.
For applications demanding superior optical performance (contrast, viewing angles, color), optical bonding helps realize the display's full potential.
Optical bonding may be optional for displays in controlled indoor environments, low-light conditions, or very cost-sensitive applications with minimal exposure to harsh elements.
A thorough cost-benefit analysis based on the display's specific operational environment and functional requirements is essential to determine the necessity of optical bonding.
The journey through the intricate world of LCD display design, particularly for industrial and outdoor applications, reveals that superficial cost-cutting often leads to significant long-term liabilities. The seemingly minor detail of an air gap in an unbonded display transforms from an insignificant space into a critical vulnerability, directly undermining clarity, durability, and ultimately, operational effectiveness in challenging environments. We have thoroughly examined how this air gap perpetuates multiple Fresnel reflections, resulting in severe glare and diminished contrast, rendering displays unreadable under direct sunlight. Furthermore, this void becomes a breeding ground for internal condensation during temperature fluctuations and provides an unwelcome entry point for dust and particulate matter, compromising both visual integrity and electronic longevity. The inherent structural weakness caused by unbonded layers also leaves displays highly susceptible to physical impact and persistent vibration, dramatically shortening their useful life in demanding operational contexts.
In stark contrast, the strategic implementation of optical bonding emerges not as a mere upgrade, but as an indispensable engineering solution. This process transcends simple assembly by creating a monolithic optical and structural unit. By filling the air gap with an optically matched adhesive, optical bonding systematically eliminates internal reflections, thus delivering vastly superior contrast, enhanced perceived brightness, and crystal-clear readability even in the most intense ambient light. Beyond these profound optical improvements, the robust, solid nature of a bonded display provides unparalleled resistance to physical shock and constant vibration, significantly reducing the likelihood of breakage or internal damage. Moreover, the sealed environment created by the bonding process completely eradicates the risks of internal condensation and particulate ingress, safeguarding sensitive electronic components and ensuring continuous, uninterrupted visual output. This comprehensive protection extends the display's operational lifespan, minimizes maintenance requirements, and dramatically lowers the total cost of ownership, securing a superior return on investment for businesses that prioritize reliability and sustained performance.
While the upfront cost of an optically bonded display may be marginally higher than its unbonded counterpart, the long-term value proposition is undeniable, particularly for mission-critical applications in harsh conditions. For outdoor digital signage, ruggedized industrial control panels, public information kiosks, and any display exposed to environmental extremes or potential physical abuse, optical bonding is not just a recommended feature; it is a fundamental pillar of performance and longevity. It assures that your investment remains visible, functional, and resilient, regardless of the challenges it faces. Businesses that embrace this technology are not simply purchasing a display; they are securing a reliable, enduring information conduit that actively contributes to operational efficiency, safety, and a commanding presence in their respective markets. The decision to integrate optical bonding is a clear commitment to uncompromising quality and a proactive step towards future-proofing your digital infrastructure against the relentless forces of the environment.
Therefore, for any organization seeking to deploy displays in demanding environments where clarity, durability, and continuous operation are non-negotiable, the choice is clear. Opt for displays that leverage the transformative power of optical bonding. This strategic decision ensures that your investment continues to deliver critical information with unwavering reliability, translating directly into enhanced productivity, reduced operational expenditure, and a clear competitive advantage. Partner with XIANHENG Tech to discuss how our expertly bonded LCD solutions can elevate your next project and provide the lasting performance your business demands. Connect with our engineering team today to explore how our advanced display technologies can fortify your applications against any challenge.
