| Specifications | ||
| Systems | ||
| Name | 12.1 inch Panel PC | |
| Processor | Optional Intel® Celeron® J1900 or Gen 4/7/8/11 Core i3/i5/i7 CPU | |
| System Memory | One SODIMM slot that supports up to 16 GB | |
| Network | 2 x GbE RJ45 2 | |

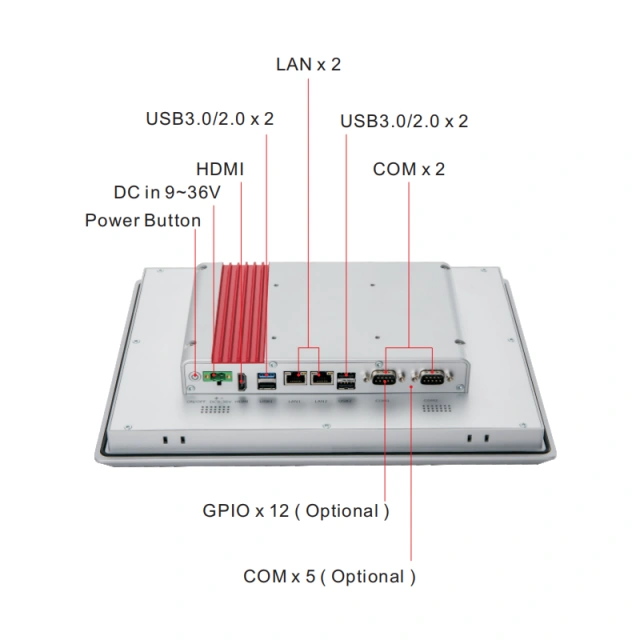

| I/O Interface | 3 x USB2 .0, 1 x USB3 .0 2 x DB-9 COM1&COM2, RS-232/485 2 x 3-wire COM3&COM4 RS-232/485 Phoenix Terminal 2 x 3-wire COM5&COM6 RS-232 Phoenix Terminal 1 x Audio Line-out 2 x 8Ω 1W amplifier output (optional) 1 x Phoenix terminal remote switch interface 1 x HDMI 1 x 12bit GPIO (optional) |
|
| Storage | 1 x mSATA 1 x SATA ( 2.5” SATA ) |
|
| Expansion Slot | Mini-PCIe x1 full card, onboard SIM card slot, support for 3G/4G modules Mini-PCIe x1 half card, supports WIFI Bluetooth |
|
| Watchdog Timer | 1~255 seconds programmable settings | |
| Support System | Windows® 7 /8/10,WES 7,LINUX | |
| Structure | ||
| Material | aluminum | |
| Installation Method | VESA 75/Panel Mount | |

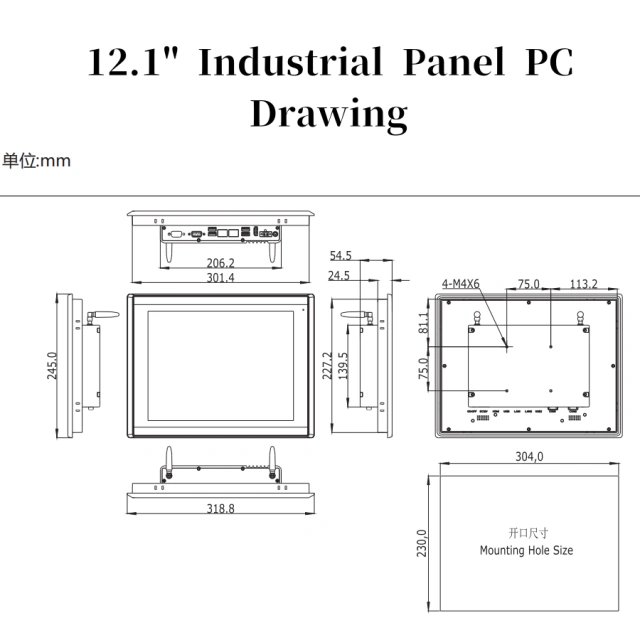

| Size | 318.8 x 245.0 x 54.5 mm | |
| Weight | TBD | |
| Environment | ||
| Operating Temperature | 0°C ~ 60°C | |
| Storage Temperature | -30°C ~ 70°C | |
| Storage Humidity | 10~90% @30°C, no condensation | |
| Power Supply | ||
| Power Input | DC 9 ~ 36V 2-pin Phoenix terminal | |
| Display Screen | ||
| LCD Type | 12.1" TFT-LCD | |
| Resolution | 1024 x 768 | |
| Maximum Color | 16.2M | |
| Brightness | 500 cd/m² | |
| Perspective (CR>=10) | -85 ~85 ° ( H ) , -85 ~85 ° (V ) | |
| Backlight | LED | |
| Backlight Life (Hours) | 30,000 | |
| Touch Screen | ||
| Type | 5-wire resistive type | 10-point capacitive screen |
| Transmittance | 78% | ＞85% |
| Service Life | 250 grams and 10 million clicks | Hardness 7H |
| Accessories | Standard Accessories | Optional Accessories |
| Host | WI-FI Module | |
| Driving the optical disc | 3G/4G/ 5G communication module | |
| Power adapter | SSD storage hard disk | |
| Phoenix terminal | VESA mount | |
| 2. 5-Inch hard drive bracket | ||
| Screw | ||
