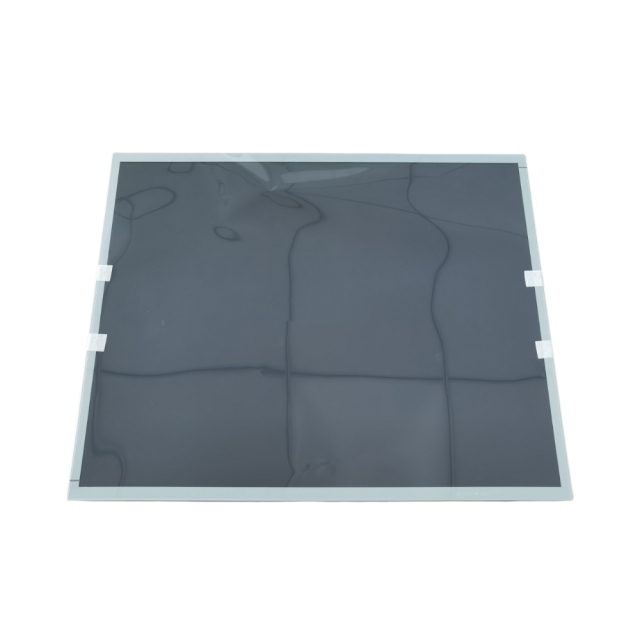

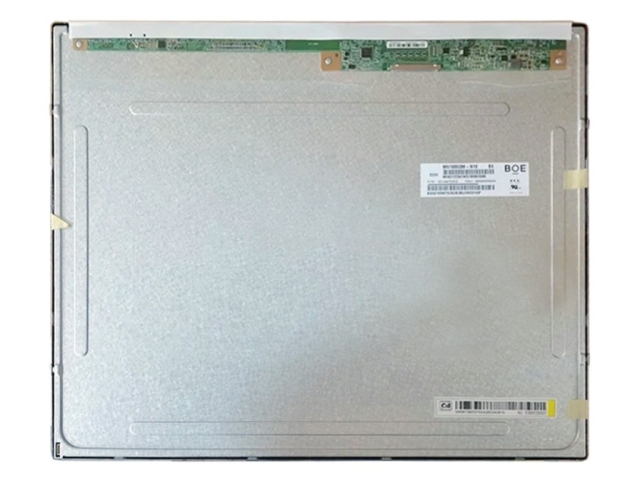

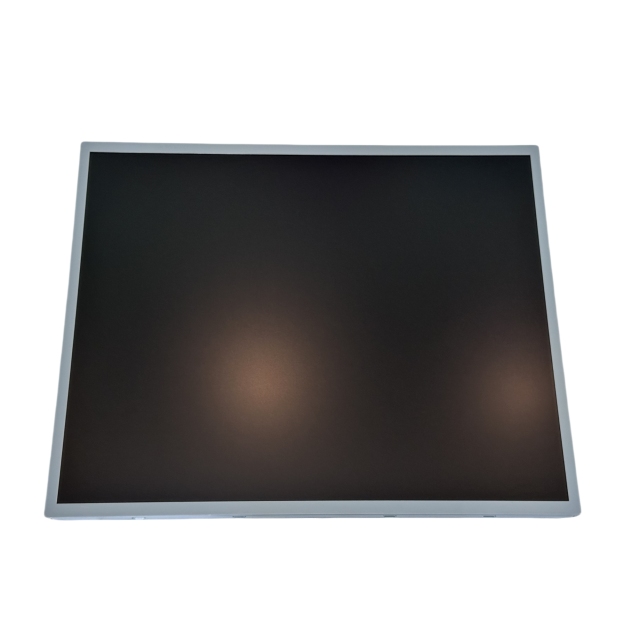

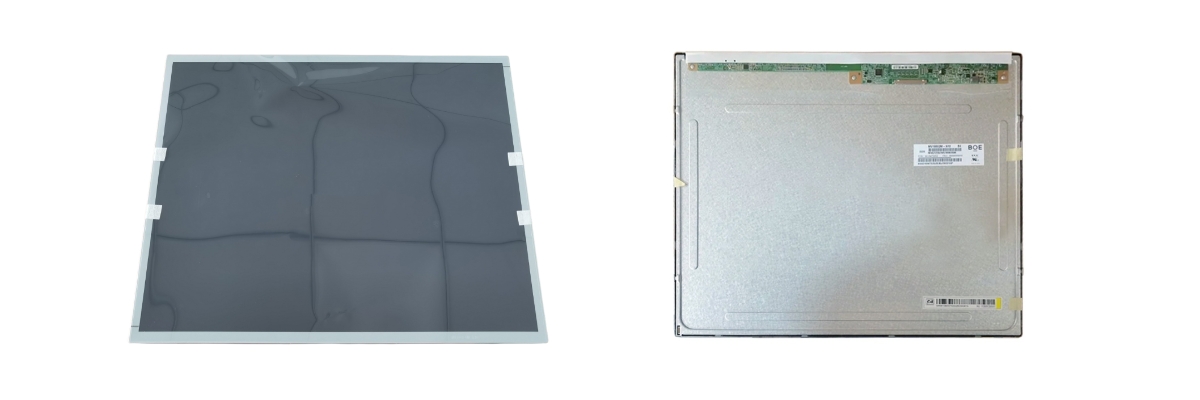

EV190E0M-N10 is a 19.0" diagonal a-Si TFT-LCD module from BOE, with an integrated WLED backlight (no backlight driver included). With SXGA resolution (1280×1024) and ADS transmissive mode, the panel delivers reliable visual performance, wide viewing angles, and industrial-grade durability for equipment and embedded systems.
EV190E0M-N10 is recommended for industrial and embedded applications where SXGA resolution and robust performance are required.
| Brand | BOE |
|---|---|
| Model P/N | EV190E0M-N10 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB) × 1024 (SXGA), 86 PPI |
| Active Area (W×H) | 374.784 × 299.827 mm |
| Outline (mm) | 396 × 324 × 10.4 |
| Surface Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Response Time | Tr/Td = 8/8 ms (Typ.), G-to-G = 14 ms (Typ.) |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M, 73% NTSC |
| Backlight | 15S2P WLED, 30K hours (no driver) |
| Mass | 1.69 Kgs (Typ.) |
| Interface | LVDS (2 ch, 8-bit), 30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Operating Temp. | 0 ~ 50 °C |
| Storage Temp. | -20 ~ 60 °C |
| Touchscreen | Without (optional) |
XIANHENG TECH offers OEM/ODM support, touch integration, and volume supply. Contact our sales team for quotes and lead times.
