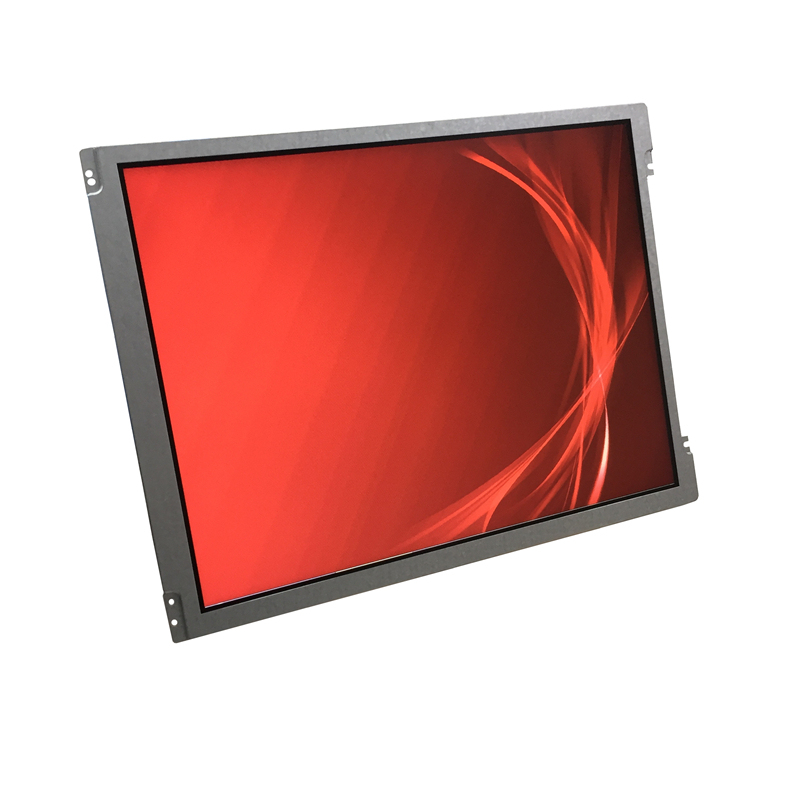

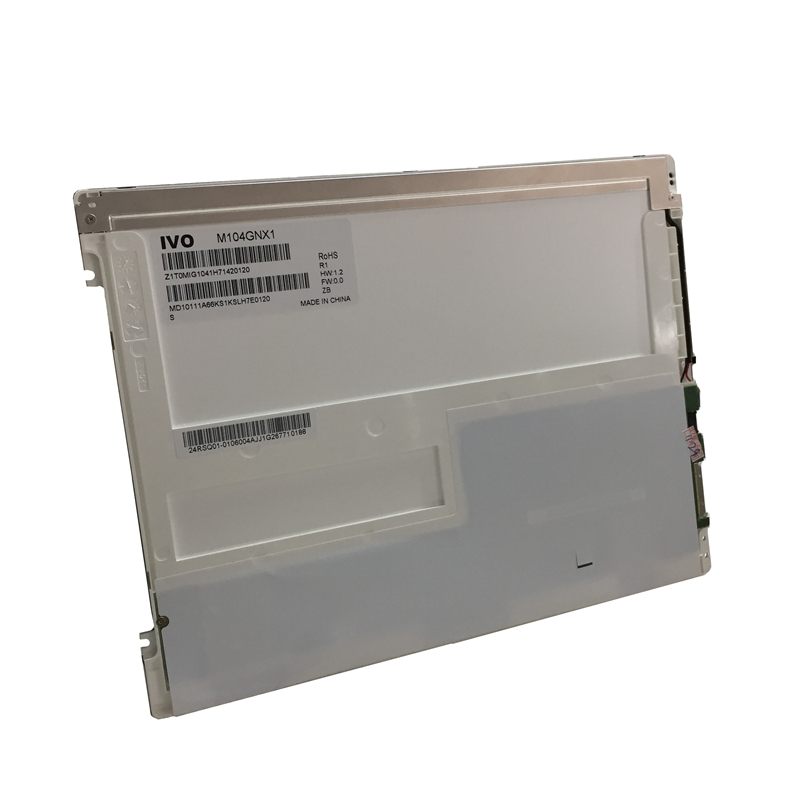

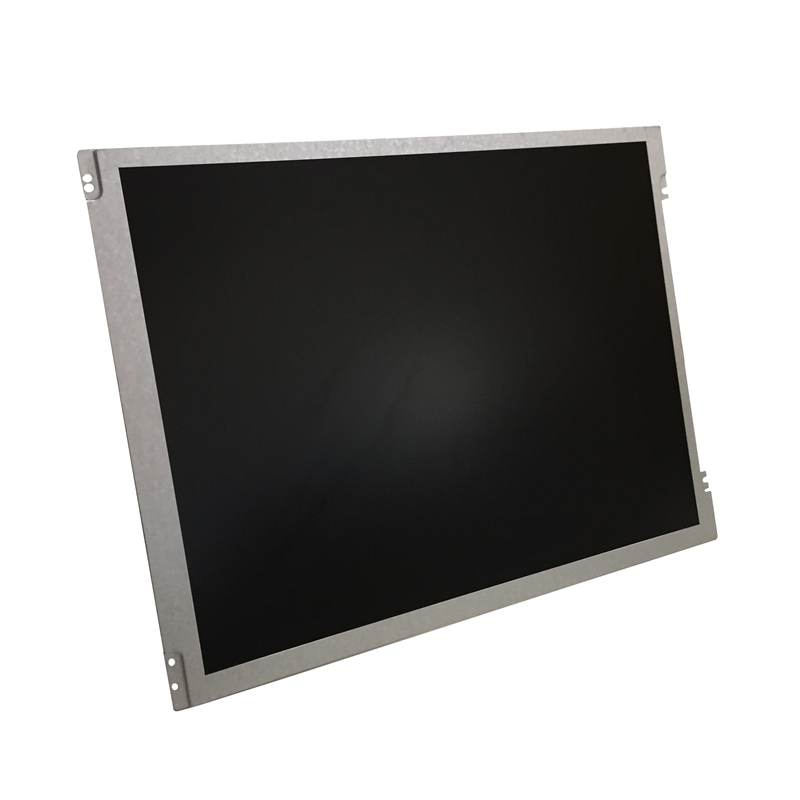

| Brand | IVO |
| Model | M104GNX1 R1 |
| Diagonal Size | 10.4 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1024(RGB)×768 [XGA] |
| Configuration | RGB Vertical Stripe |
| Active Area | 211.2(H)×158.4(V) mm |
| Outline Dim. | 236(H)×176.9(V) ×6.3(D) mm |
| Bezel Area | 214.8(H)×162.0(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 75/75/75/75 (Typ.)(CR≥10) Left / Right / Up / Down |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 50% (CIE1931) |
| Light Source | WLED , 30K hours , With LED Driver |
| Weight | 290g (Max.) |
| Designed For | Industrial Application |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit) , Connector |
| Power Supply | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
