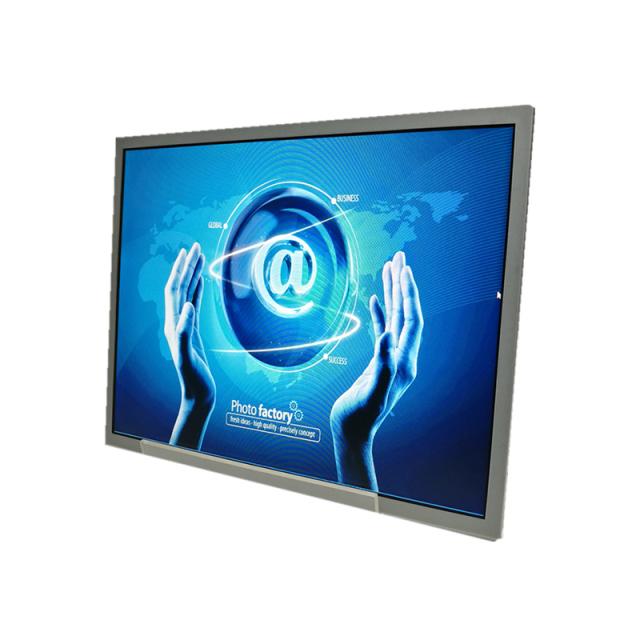

LQ150X1LG96 SHARP 15.0 inch industrial TN TFT-LCD with high luminance 1050 cd/m2 and wide vision for game machine.
| General Specification | |
| Brand | SHARP |
| Model | LQ150X1LG96 |
| Diagonal Size | 15.0 inch |
| Type | a-Si TFT-LCD , LCM |
| Pixel Format | 1024(RGB)×768 [XGA] |
| Configuration | RGB Vertical Stripe |
| Active Area | 304.128(H)×228.096(V) mm |
| Outline Dim. | 326.5(H)×253.5(V) ×10.1(D) mm |
| Bezel Area | 307.2(H)×231.1(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1050 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.2M 70% (CIE1931) |
| Light Source | WLED , 30K hours , Embedded (LED Driver) |
| Weight | 950g (Max.) |
| Designed For | Game Machine Industrial Application |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | 20 pins LVDS (1 ch, 8-bit) , Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -30 ~ 70 °C |
