High durability | Wide temperature | Industrial-grade reliability

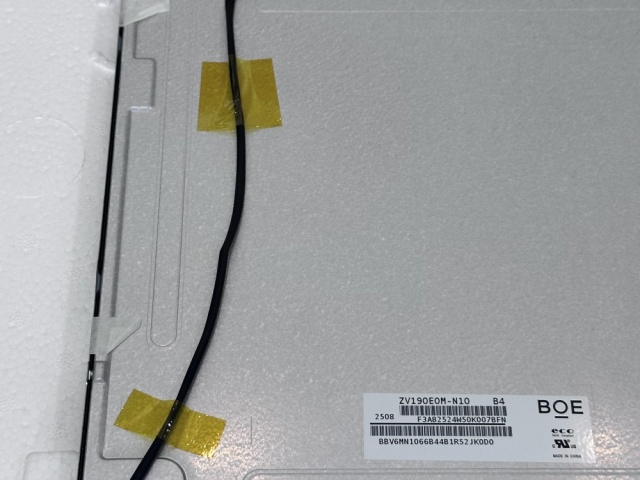

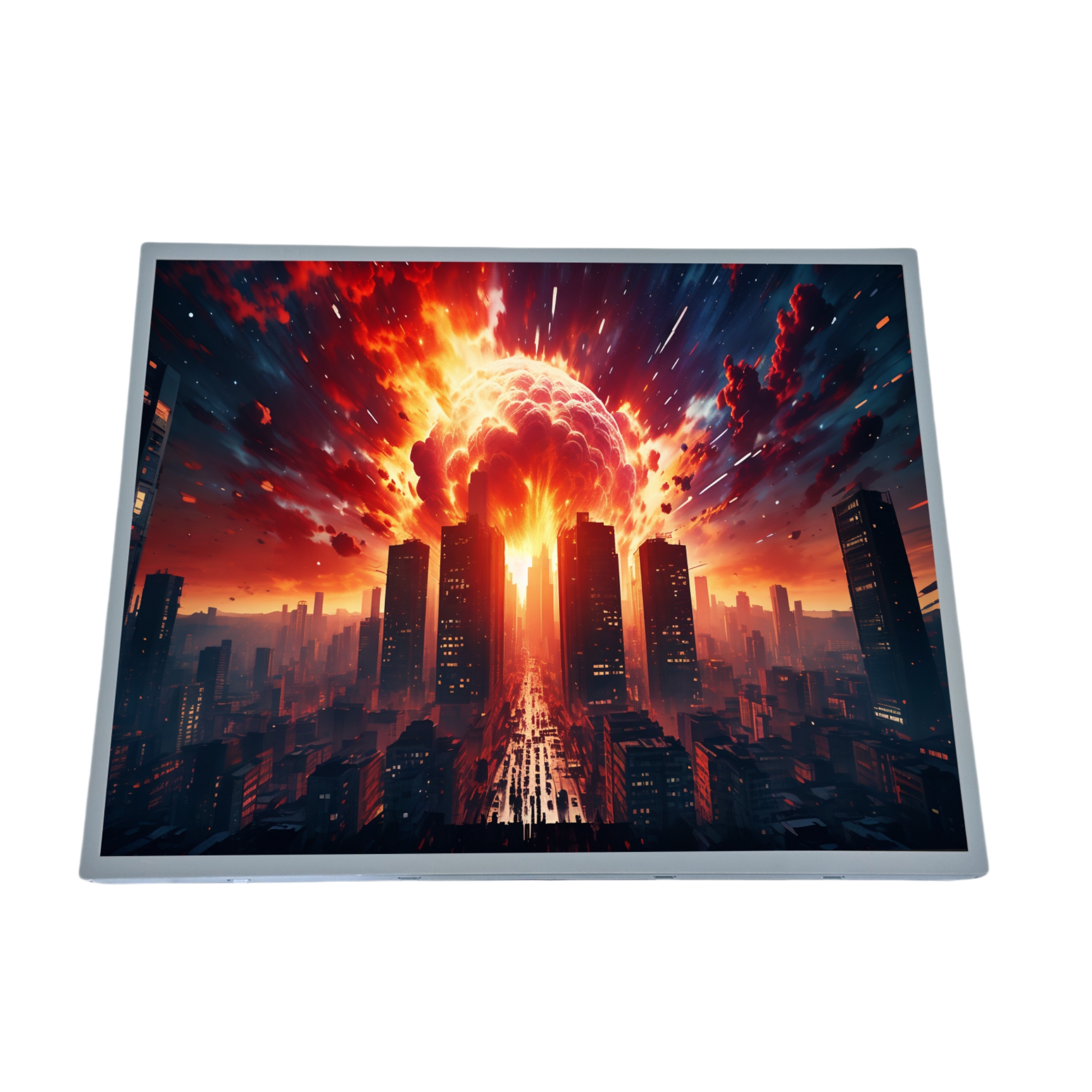

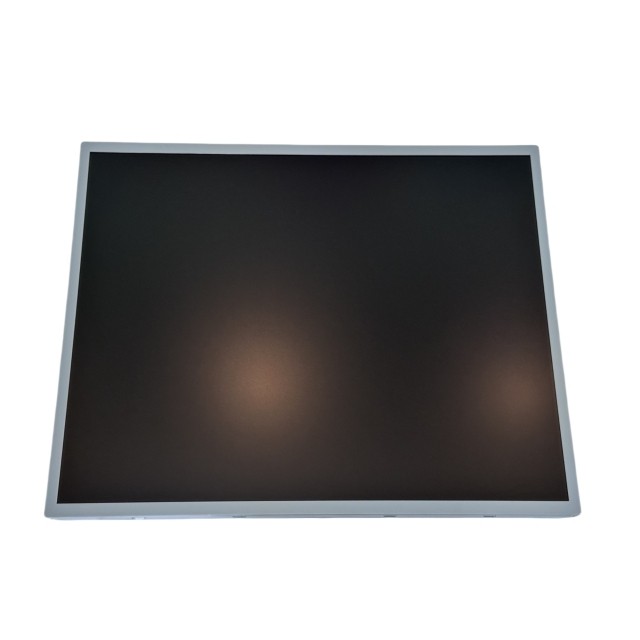

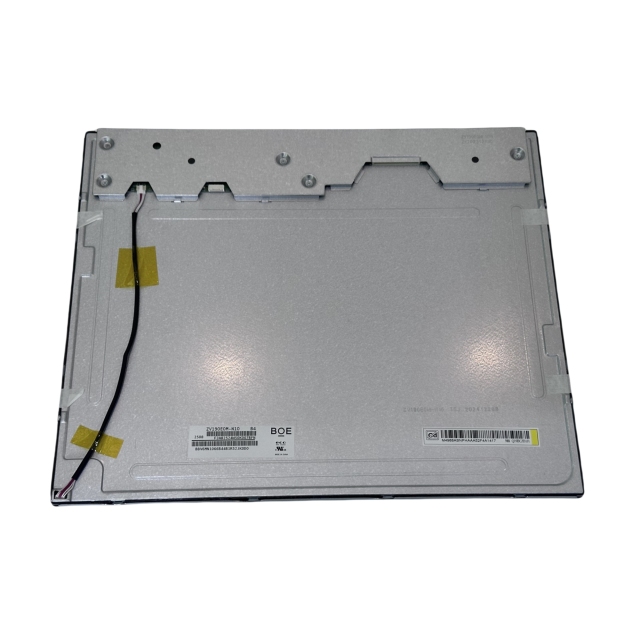

The ZV190E0M-N10 is a 19.0-inch a-Si TFT-LCD module from BOE, designed for industrial applications. It features 1280×1024 (SXGA) resolution, a long-life WLED backlight with LED driver, and an extended −20 ~ 70°C operating range. With wide viewing angles and durable construction, it ensures dependable performance in demanding environments.
Key Advantages: SXGA resolution, wide viewing angle, long-life WLED backlight, industrial temperature range, robust design.
| Brand | BOE |
|---|---|

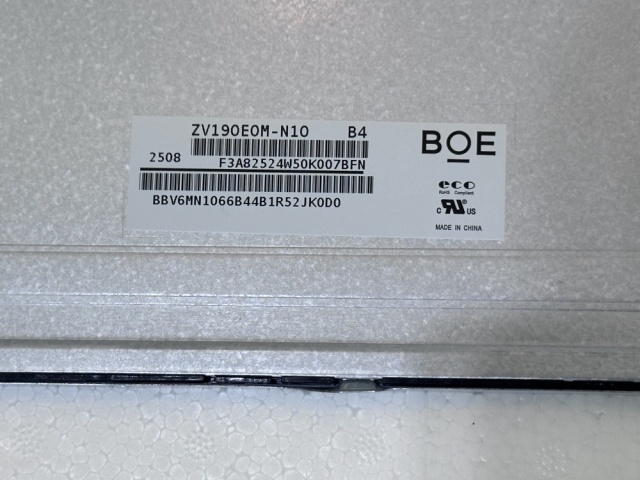

| Model | ZV190E0M-N10 |
| Diagonal Size | 19.0 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB) × 1024 (SXGA) |
| Pixel Format | RGB Vertical Stripe |

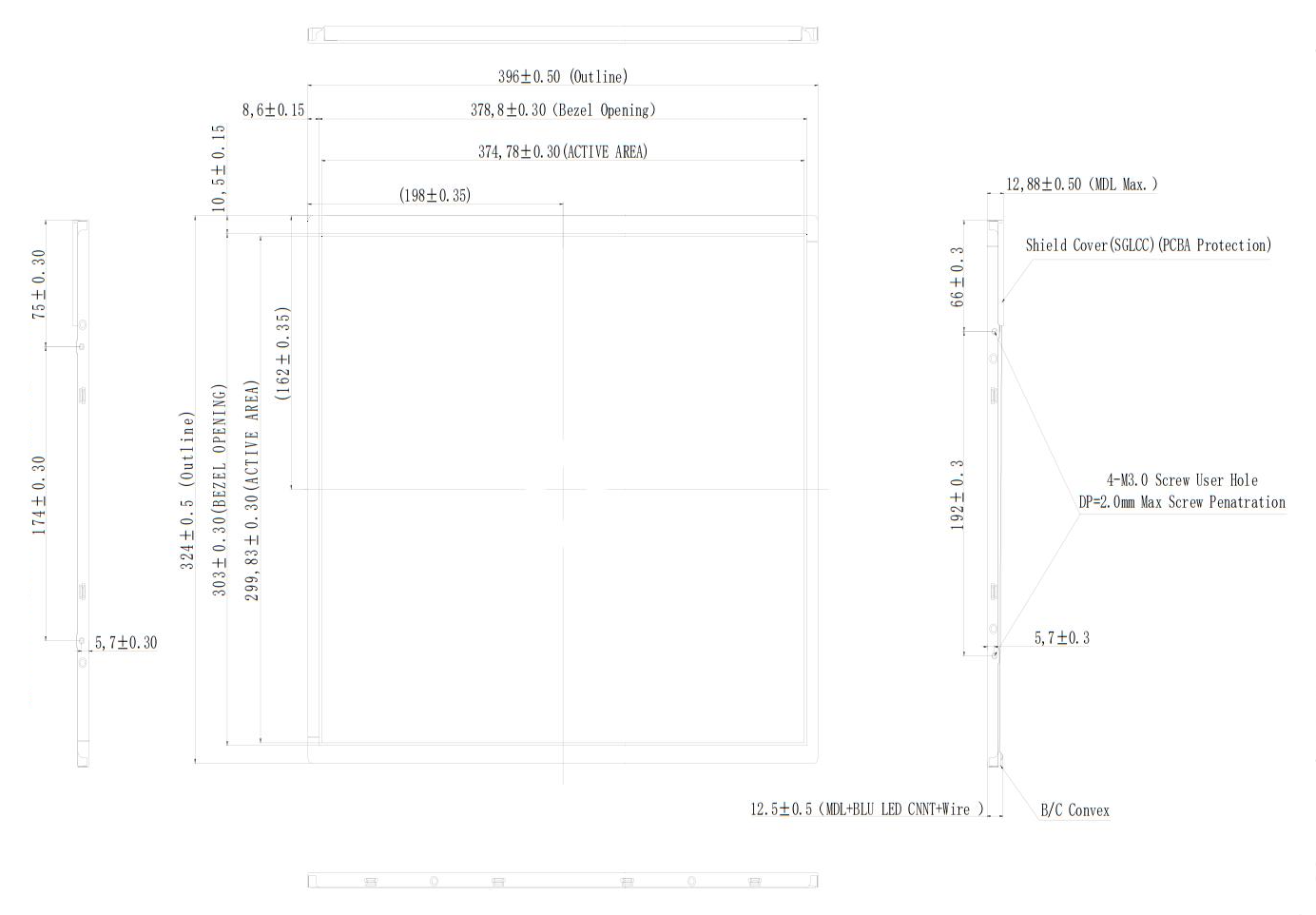

| Active Area | 374.784(W) × 299.827(H) mm |

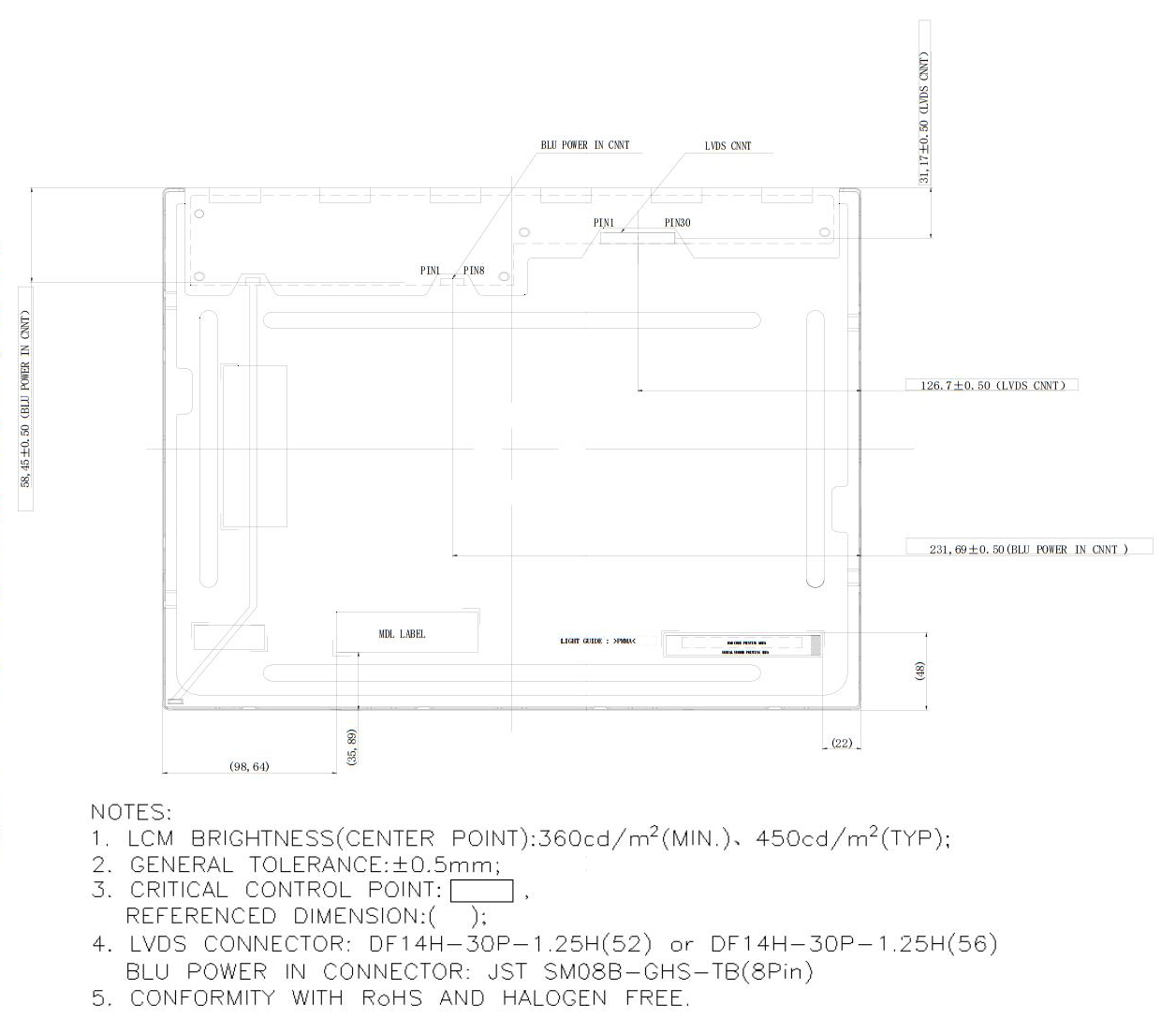

| Outline Size | 396(W) × 324(H) × 13.38(D) mm |
| Weight | 1.80 kg (Typ.) |
| Frame Rate | 60 Hz |
