Industrial Touchscreen Selection Guide: Capacitive vs Resistive in Harsh Environments

Introduction

In the demanding world of industrial automation, outdoor equipment, and mission-critical systems, the touchscreen interface serves as the critical connection point between operators and complex machinery. As an engineer with over a decade of experience developing touch solutions for harsh environments, I've witnessed firsthand how selecting the wrong touch technology can lead to costly downtime and operational failures. This guide provides a comprehensive comparison of capacitive and resistive touchscreen technologies specifically for industrial and harsh environment applications, helping procurement specialists and system integrators make informed decisions based on their specific operational requirements.

Understanding Touchscreen Technologies in Industrial Contexts

The industrial environment presents unique challenges for touchscreen interfaces that consumer-grade solutions simply cannot address. Before comparing specific technologies, it's essential to understand how industrial requirements differ from consumer applications.

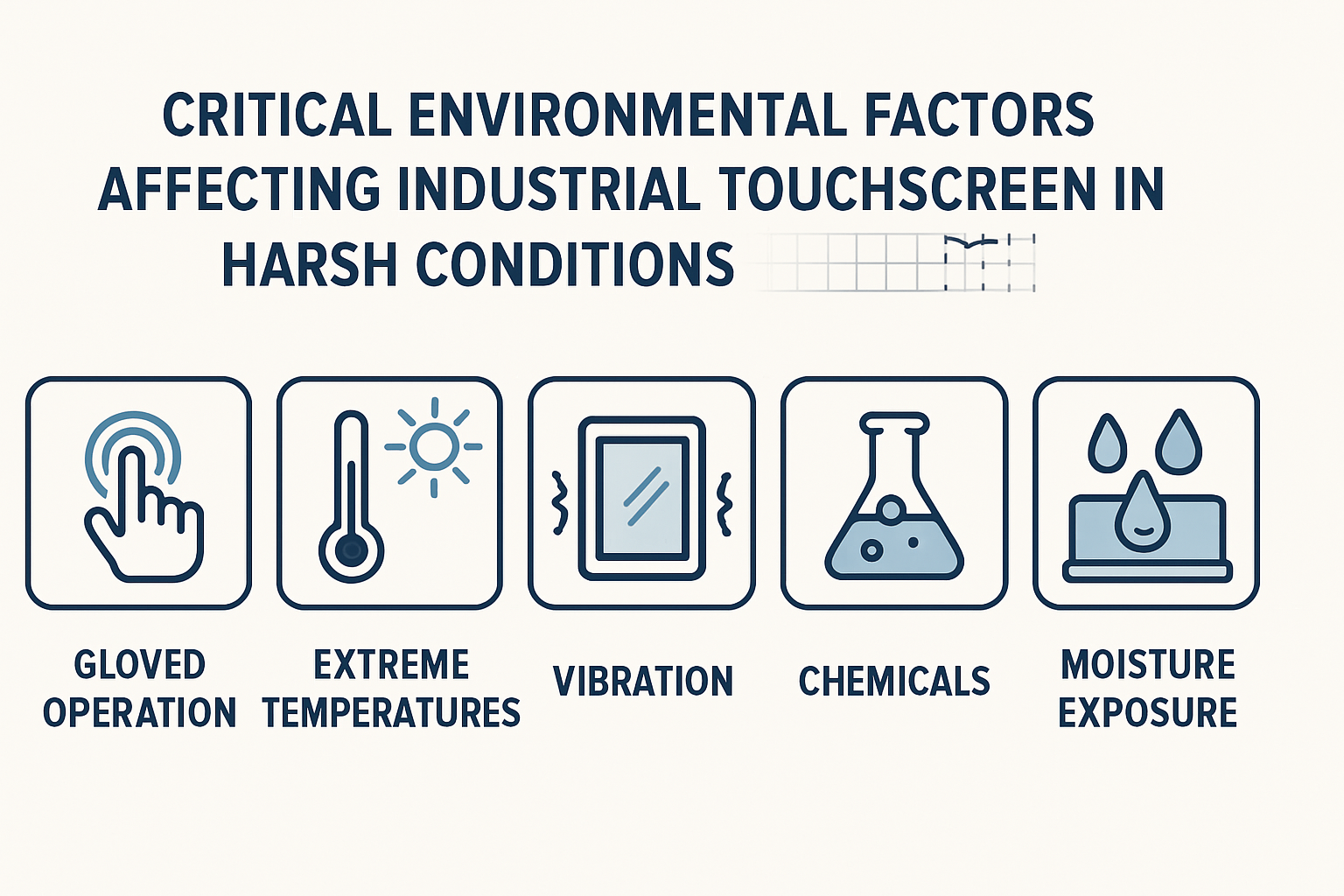

Key Industrial Touchscreen Requirements

1. Operational Reliability: Must function flawlessly in environments with dust, moisture, vibration, and temperature extremes
   2. Input Flexibility: Must accommodate various input methods including gloved hands, styluses, and occasional bare-finger operation
   3. Durability: Must withstand millions of touch operations, impacts, scratches, and chemical exposure
   4. Environmental Resistance: Must maintain performance across wide temperature ranges and in high-humidity conditions
   5. Integration Capability: Must interface reliably with industrial control systems and maintain EMI/RFI compatibility

Resistive Touchscreen Technology: Pressure-Based Interaction

Resistive touchscreen technology relies on pressure to detect touch inputs, using a multi-layer construction with conductive layers separated by spacer dots.

How Resistive Technology Works

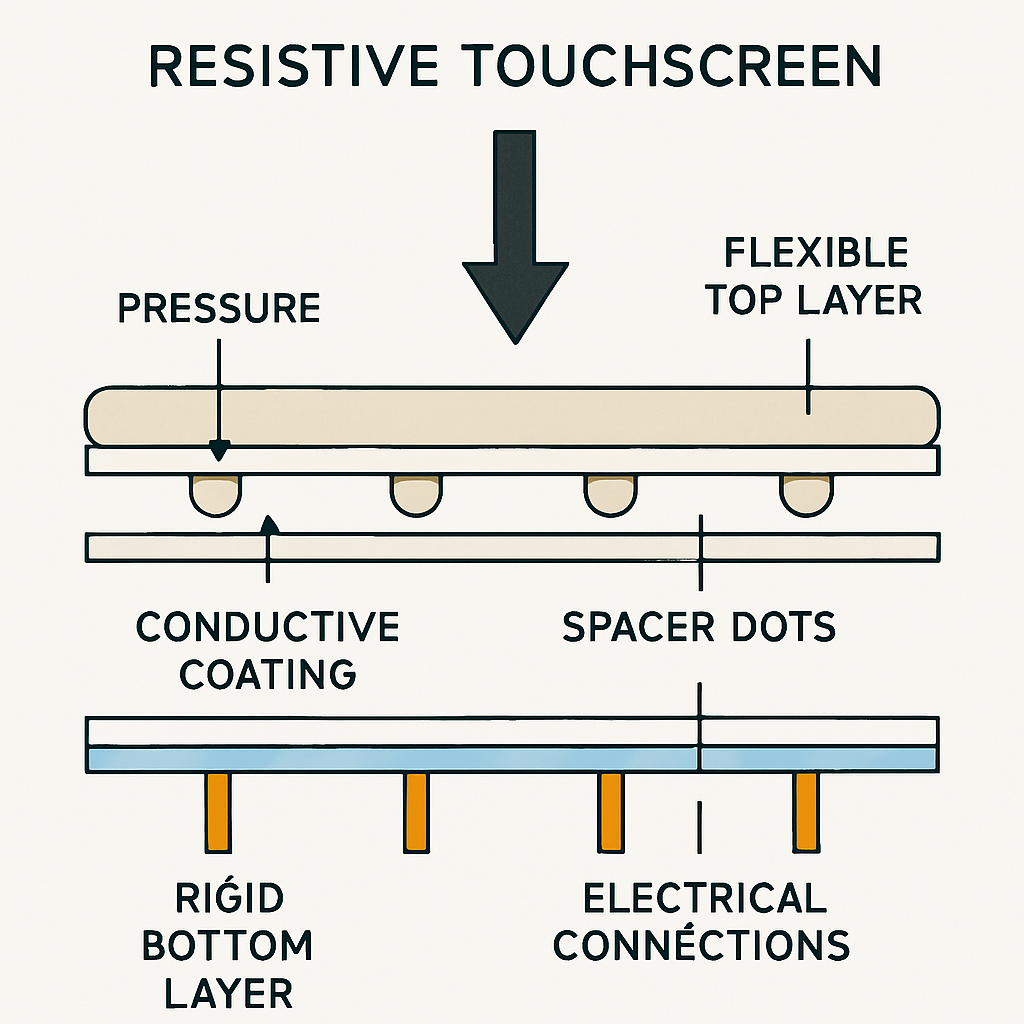

Figure: 2: Cross-sectional view of resistive touchscreen construction showing pressure-based detection mechanism

When pressure is applied to a resistive touchscreen, the flexible top layer makes contact with the bottom layer, creating an electrical connection at the precise touch point. This simple mechanical approach offers several distinct advantages in industrial environments:

Advantages in Harsh Environments

1. Universal Input Compatibility: Functions with any input method that can apply pressure—gloved fingers, styluses, tools, or even the corner of a clipboard
   2. Moisture and Contamination Resistance: Can be sealed completely against liquids and operates reliably even when the surface is wet or dirty
   3. Cost-Effectiveness: Generally lower initial cost and replacement cost compared to capacitive alternatives
   4. Precision: Offers excellent accuracy for detailed input in applications requiring precise control

Limitations to Consider

1. Optical Clarity: Multiple layers reduce light transmission (typically 75-80% compared to 90%+ for capacitive)
   2. Durability Concerns: Mechanical nature means eventual wear of the flexible top layer after millions of activations
   3. Single-Touch Operation: Most industrial resistive screens support only single-touch input (though multi-touch resistive exists)
   4. Activation Force Requirement: Requires deliberate pressure, which can be an advantage in preventing accidental activation

Capacitive Touchscreen Technology: Electrical Field Detection

Capacitive touchscreen technology detects touch by measuring changes in an electrical field rather than physical pressure, using a glass substrate with a transparent conductive coating.

How Capacitive Technology Works

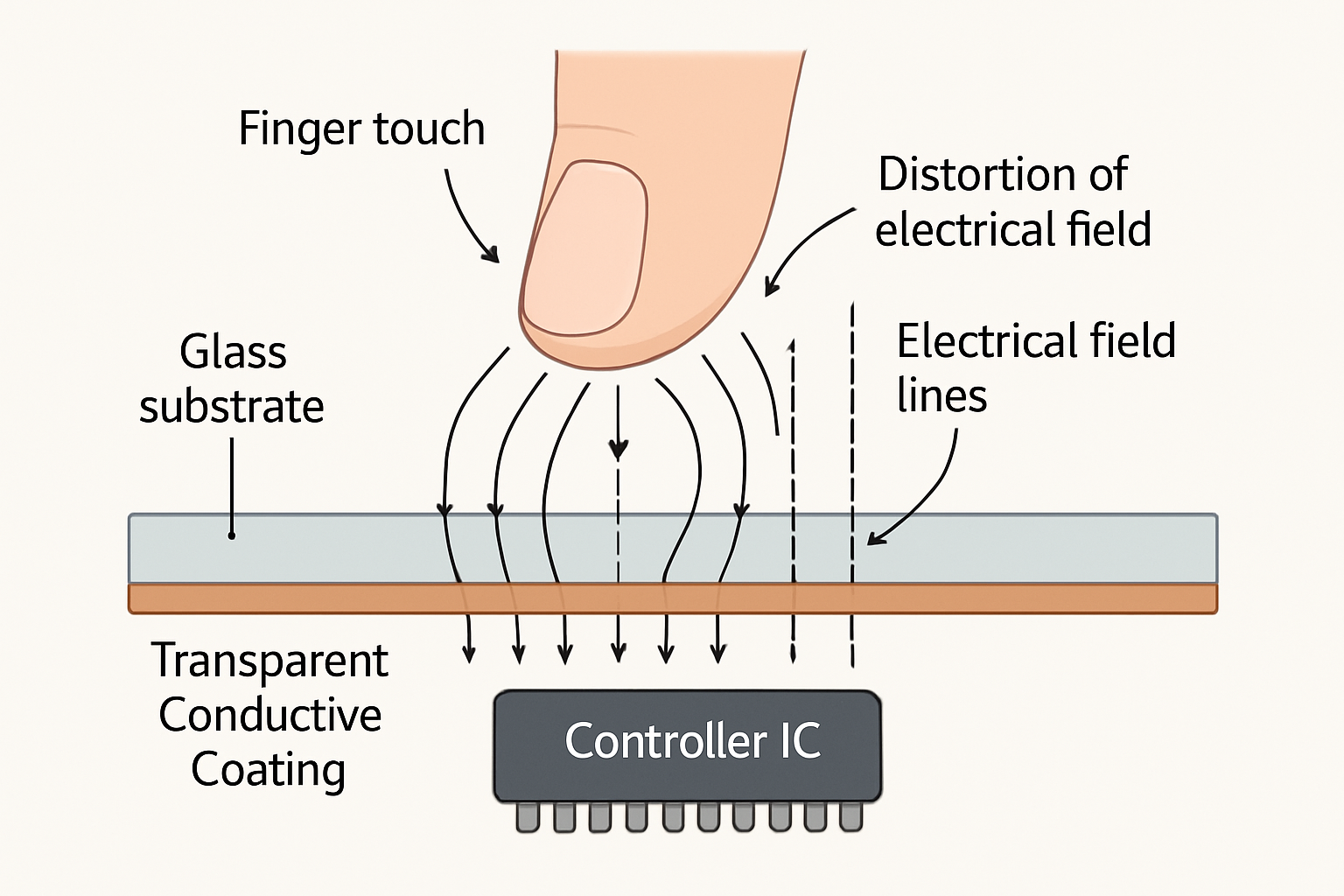

Figure: 3: Cross-sectional view of capacitive touchscreen construction showing electrical field detection mechanism*

Capacitive touchscreens operate by creating a uniform electrostatic field across the screen surface. When a conductive object (like a human finger) touches the screen, it distorts this field, allowing the controller to precisely calculate the touch location. This electrical approach offers several advantages:

Advantages in Harsh Environments

1. Superior Optical Clarity: Single-layer construction provides excellent light transmission and clarity
   2. Enhanced Durability: No moving parts means longer operational life in high-use applications
   3. Multi-Touch Capability: Supports complex gestures and multi-finger operation when required
   4. Smooth Operation: Requires no physical pressure, allowing for more intuitive user interaction

Limitations to Consider

1. Input Restrictions: Standard capacitive screens require conductive input (bare fingers) and won't work with standard gloves or non-conductive styluses
   2. Environmental Sensitivity: Performance can be affected by moisture, though advanced treatments can mitigate this
   3. Higher Cost: Generally more expensive than resistive alternatives, particularly for larger screen sizes
   4. EMI Sensitivity: More susceptible to electromagnetic interference in industrial environments

Specialized Industrial Solutions: Bridging the Technology Gap

Modern industrial touch solutions have evolved to address the limitations of both technologies, creating specialized options that combine the best features of each approach.

Advanced Capacitive Solutions for Industrial Use

1. Glove-Compatible Projected Capacitive: Enhanced sensitivity allows operation with work gloves up to 5mm thick
   2. Water-Rejection Algorithms: Sophisticated firmware distinguishes between water droplets and intentional touches
   3. EMI-Hardened Designs: Shielding and filtering techniques protect against electromagnetic interference
   4. Ruggedized Construction: Chemically strengthened glass and enhanced bonding techniques improve impact resistance

Enhanced Resistive Solutions

1. Multi-Touch Resistive: Advanced controllers enable basic multi-touch functionality while maintaining compatibility with any input type
   2. Hardcoated Surfaces: Special coatings improve scratch resistance and extend operational life
   3. Optical Bonding: Eliminates internal air gaps, improving optical clarity and environmental resistance
   4. Low-Activation Force Calibration: Reduces required pressure while maintaining immunity to false activations

Decision Matrix: Selecting the Right Technology for Your Environment

The following decision matrix provides a framework for selecting between resistive and capacitive technologies based on specific environmental factors and operational requirements.

Environmental Factors Comparison

Operational Requirements Comparison

Regional Considerations for Harsh Environments

Different global regions present unique challenges for touchscreen technologies, requiring specialized approaches.

Middle Eastern Environments

The combination of extreme heat, fine dust, and sometimes gloved operation in Middle Eastern industrial environments typically favors:

- Enhanced resistive solutions with dust-resistant sealing for general industrial applications
- Specialized high-temperature capacitive solutions for applications requiring multi-touch or superior optical clarity

Southeast Asian Tropical Conditions

High humidity, seasonal monsoons, and year-round heat in Southeast Asian environments generally favor:

- Moisture-resistant capacitive solutions with water-rejection algorithms for applications requiring bare-finger operation
- Sealed resistive solutions for applications requiring gloved operation or tool input

Industry-Specific Recommendations

Manufacturing and Heavy Industry

In environments with oils, metal shavings, and workers wearing various types of gloves:
- Resistive technology typically offers the most reliable operation
- Consider enhanced resistive with hardcoated surfaces for extended durability

Food Processing and Pharmaceutical

In environments requiring frequent washdown and chemical sanitization:
- IP66/IP69K-rated capacitive systems for bare-hand operation
- Sealed resistive systems for gloved operation

Outdoor and Field Equipment

For equipment exposed to weather conditions and operated with work gloves:
- Resistive technology generally provides the most reliable operation
- Consider optical bonding to improve sunlight readability

Total Cost of Ownership Analysis

When evaluating touchscreen technologies, consider these factors beyond initial purchase price:

1. Replacement Frequency: Resistive screens typically require more frequent replacement in high-use applications
   2. Downtime Costs: The cost of system unavailability during touchscreen failures
   3. Input Flexibility: The operational impact of input limitations (gloves, styluses, etc.)
   4. Integration Complexity: Engineering resources required for system integration

Conclusion

The selection between resistive and capacitive touchscreen technologies for harsh environments should be driven by specific operational requirements rather than general technology preferences. While capacitive technology continues to advance in addressing industrial challenges, resistive technology maintains distinct advantages in certain harsh environment applications, particularly those requiring gloved operation or tool input.

XIANHENG's portfolio of industrial touchscreen solutions includes both advanced resistive and specialized capacitive options, engineered specifically for reliable operation in the most demanding environments. Our technical team specializes in matching touch technology to specific application requirements, ensuring optimal performance regardless of environmental challenges.

For more information on selecting the optimal touchscreen solution for your specific industrial application, contact our technical team for a consultation tailored to your project requirements.
