In today's increasingly mobile and outdoor-oriented business environment, standard commercial displays with typical brightness levels of 250-350 nits simply cannot deliver adequate visibility under direct sunlight. This challenge becomes particularly acute in regions with extreme solar intensity such as the Middle East, South America's high plateaus, and Southeast Asia's equatorial zones. As a display engineer with over a decade of experience in harsh environment applications, I've witnessed firsthand how high-brightness LCD technology has evolved to meet these demanding conditions, transforming previously impossible outdoor deployments into reliable, high-performance installations.
The fundamental challenge of outdoor displays is competing with ambient light. While a standard office environment might have ambient illumination of 300-500 lux, direct sunlight can reach an overwhelming 100,000+ lux. This extreme difference explains why conventional displays appear washed out or completely unreadable outdoors.
| Environment | Typical Ambient Light | Recommended Display Brightness |
| Indoor Office | 300-500 lux | 250-350 nits |
| Retail/Bright Indoor | 500-1,000 lux | 450-700 nits |
| Covered Outdoor/Shade | 1,000-10,000 lux | 700-1,500 nits |
| Indirect Sunlight | 10,000-50,000 lux | 1,500-2,500 nits |
| Direct Sunlight | 50,000-100,000+ lux | 2,500-5,000+ nits |
Creating a truly sunlight-readable display requires more than simply increasing the backlight power. Several integrated technologies work together to ensure optimal visibility in challenging light conditions.
Modern high-brightness displays utilize advanced LED array designs with enhanced thermal management to achieve brightness levels exceeding 5,000 nits while maintaining reasonable power consumption and operational lifespan.

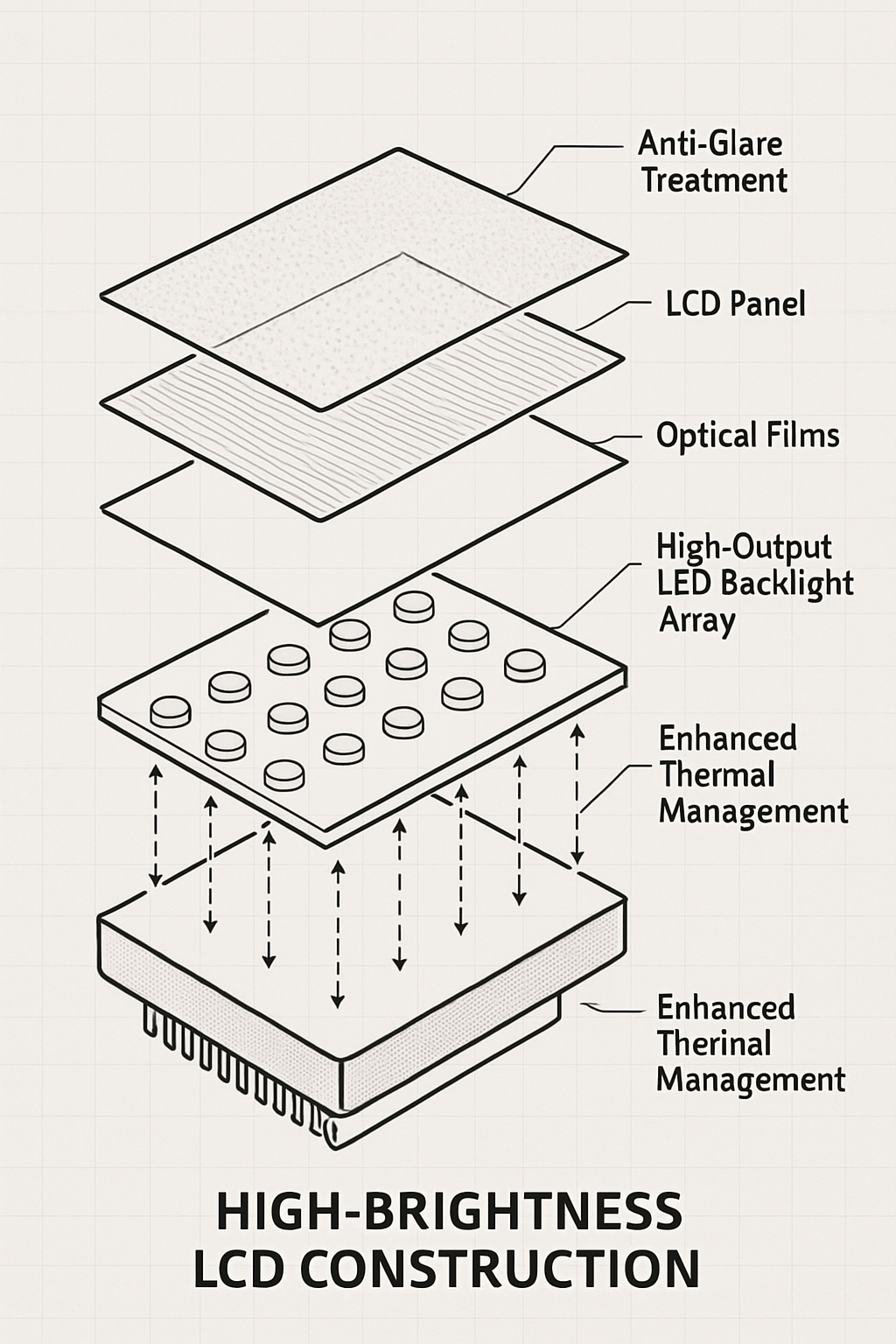

Figure: 2: Exploded view of high-brightness LCD construction showing specialized high-output LED backlight array with enhanced thermal management*
Even with powerful backlights, reflections can severely compromise outdoor readability. Two critical technologies address this challenge:
Figure: 3: Comparison showing dramatic reduction in reflections and improved contrast with optical bonding and anti-reflective treatments*
Different regions present unique challenges for outdoor displays, requiring specialized engineering approaches.
With temperatures regularly exceeding 45°C and intense solar radiation, Middle Eastern deployments require:
- Enhanced thermal management systems with active cooling
- UV-resistant materials to prevent yellowing and degradation
- Specialized optical films that maintain performance at extreme temperatures
- Dust-resistant enclosures with positive pressure systems
Regions like the Andean highlands present challenges including:
- Increased UV radiation at high altitudes requiring enhanced UV filtering
- Extreme temperature fluctuations between day and night
- Lower air density affecting thermal management requirements
The combination of high humidity, intense sunlight, and seasonal monsoons demands:
- Sealed enclosure designs with IP65+ ratings
- Condensation prevention systems
- Corrosion-resistant materials and treatments
Figure: 4: Global map of environmental challenges for outdoor high-brightness displays, showing regional variations in temperature, solar intensity, and environmental factors*
The significant power requirements of high-brightness displays have driven important innovations in energy efficiency:
High-brightness LCD technology has enabled critical applications across multiple sectors:
Digital signage at bus stops, train stations, and airports must remain readable in all lighting conditions to provide essential travel information. High-brightness displays with 2,500+ nit ratings ensure travelers can access information regardless of ambient light conditions.
From ticketing machines to interactive wayfinding, outdoor kiosks require exceptional readability combined with touch functionality that works reliably even in wet conditions or with gloved operation.
Perhaps the most demanding application, military displays must function flawlessly in desert conditions, maintaining readability for mission-critical information while withstanding extreme environmental conditions.
As outdoor digital communication becomes increasingly essential across global markets, high-brightness LCD technology continues to evolve, pushing the boundaries of what's possible in extreme sunlight environments. For procurement specialists seeking displays for challenging outdoor deployments, understanding the interplay between brightness ratings, optical treatments, and regional environmental factors is crucial to selecting the optimal solution.
XIANHENG's portfolio of high-brightness displays, ranging from 500 to 3,000+ nits, combined with advanced optical bonding and anti-reflective technologies, provides field-proven solutions for the most demanding outdoor applications across global markets. Our engineering team specializes in customizing brightness, thermal management, and environmental protection features to meet the specific requirements of your deployment region and application.
For more information on selecting the optimal high-brightness display solution for your specific environmental challenges, contact our technical team for a consultation tailored to your project requirements.
